Building a Hybrid Cloud Monitoring Stack with Zabbix, ZeroTier, and Azure

🧩 Problem

I wanted a centralized monitoring platform for my homelab that could monitor:

• On-premises VMware ESXi hosts
• Linux virtual machines
• Windows systems
• HPE iLO hardware management
• Cloud-hosted workloads

The challenge was that most of my infrastructure lives behind NAT at home, and I did not want to expose services publicly or configure complex port forwarding.

🛠️ Solution Overview

I built a hybrid monitoring architecture using:

• Zabbix 7.0 LTS hosted in Azure
• ZeroTier for secure private connectivity
• Zabbix Proxy running locally in my homelab
• VMware API monitoring for ESXi
• SNMP monitoring for HPE iLO

This design allows cloud-hosted monitoring while keeping home infrastructure private.

🏗️ Architecture Overview

[Azure Zabbix Server]
            │
      (ZeroTier VPN)
            │
 ┌──────────┴──────────┐
 │                     │
[Remote Hosts]    [Zabbix Proxy]
 Linux/Windows       (Homelab)
                         │
         ┌───────────────┼──────────────┐
         │               │              │
      [ESXi 01]      [ESXi 02]      [HPE iLO]
      VMware API     VMware API        SNMP

Why This Design?

Instead of exposing home infrastructure to the internet:

• Remote hosts connect directly over ZeroTier
• LAN-only systems are monitored through a local Zabbix Proxy
• The proxy forwards monitoring data securely to Azure

This gives me:

✅ Centralized monitoring
✅ No inbound home firewall exposure
✅ Better scalability for future labs or remote sites

🔧 Environment

Cloud Environment (Azure)

Homelab Environment

🚀 Part 1: Deploying Zabbix Server in Azure

Step 1: Create the Azure VM

Using my Azure for Students subscription, I created:

VM Size: Standard_B2ats_v2
OS: Ubuntu Server 24.04 LTS
Region: Australia East
Authentication: SSH Key

I intentionally selected a smaller VM to reduce resource usage. !

Step 2: Add Swap Memory

Since the VM only had 1 GB RAM, I added a 2 GB swapfile to avoid memory pressure during MariaDB and Zabbix operations.

sudo fallocate -l 2G /swapfile
sudo chmod 600 /swapfile
sudo mkswap /swapfile
sudo swapon /swapfile
echo '/swapfile none swap sw 0 0' | sudo tee -a /etc/fstab

This significantly improved stability.

Step 3: Install ZeroTier

To securely connect my home lab to Azure:

curl -s https://install.zerotier.com | sudo bash
sudo zerotier-cli join YOUR_NETWORK_ID

After approval in the ZeroTier portal, the VM received a private overlay IP.

This became the primary communication path between my monitoring server and remote systems.

Step 4: Install Zabbix 7.0 LTS

Installed required packages:

wget https://repo.zabbix.com/zabbix/7.0/ubuntu/pool/main/z/zabbix-release/zabbix-release_latest_7.0+ubuntu24.04_all.deb
sudo dpkg -i zabbix-release_latest_7.0+ubuntu24.04_all.deb
sudo apt update

sudo apt install -y \
zabbix-server-mysql \
zabbix-frontend-php \
zabbix-apache-conf \
zabbix-agent2 \
zabbix-sql-scripts

Step 5: Configure MariaDB

Created the database:

sudo mysql -u root

CREATE DATABASE zabbix CHARACTER SET utf8mb4 COLLATE utf8mb4_bin;
CREATE USER 'zabbix'@'localhost' IDENTIFIED BY 'StrongPassword';
GRANT ALL PRIVILEGES ON zabbix.* TO 'zabbix'@'localhost';
FLUSH PRIVILEGES;

Imported schema:

zcat /usr/share/zabbix-sql-scripts/mysql/server.sql.gz | \
mysql -uzabbix -p zabbix

Step 6: Configure SSL

To securely expose the dashboard:

sudo apt install certbot python3-certbot-apache -y
sudo certbot --apache

Final dashboard URL:

https://your.domain.com/zabbix

!

📡 Part 2: Monitoring Remote Hosts with ZeroTier

For systems outside my LAN:

• Windows machines
• Linux VMs
• Wazuh server

I installed:

• ZeroTier agent
• Zabbix Agent 2

Example Linux installation:

sudo apt install zabbix-agent2 -y

Updated:

Server=YOUR-ZABBIX-ZEROTIER-IP
ServerActive=YOUR-ZABBIX-ZEROTIER-IP

This allowed agents to communicate securely without public exposure.

🔁 Part 3: Deploying a Local Zabbix Proxy

Why Use a Proxy?

Some systems in my homelab:

• ESXi hypervisors
• HPE iLO
• Internal VMs

should remain LAN-only.

Instead of installing ZeroTier everywhere, I deployed a Zabbix Proxy VM inside ESXi.

The proxy:

1. Collects monitoring data locally
2. Talks to ESXi APIs
3. Queries SNMP devices
4. Sends everything securely to Azure

Proxy Configuration

Installed:

sudo apt install \
zabbix-proxy-sqlite3 \
zabbix-agent2 -y

Updated:

sudo nano /etc/zabbix/zabbix_proxy.conf

Configured:

Server=YOUR-ZABBIX-ZEROTIER-IP
Hostname=zabbix-proxy-homelab
ProxyMode=0
StartVMwareCollectors=2

🖥️ Part 4: Monitoring VMware ESXi

Instead of agents, I used the VMware API.

Configured host macros:

{$VMWARE.URL}
{$VMWARE.USERNAME}
{$VMWARE.PASSWORD}

Using templates:

VMware
VMware Hypervisor

This automatically discovered:

• Hypervisor health
• CPU & memory usage
• Datastores
• Virtual machines

🔋 Part 5: Monitoring HPE iLO via SNMP

Enabled SNMP in iLO:

Community: public
Port: 161
Version: SNMPv2

Validated connectivity:

snmpwalk -v2c -c public 192.168.1.4

Applied template:

HP iLO by SNMP

This gave visibility into:

• Temperature
• Fans
• Hardware health
• Power supply status
• Firmware information

⚠️ Challenges Faced

1. MariaDB Database Error

After installation:

Database error
No such file or directory

Cause: MariaDB service stopped.

Fix:

sudo systemctl start mariadb

2. Azure VM Resource Constraints

1 GB RAM was insufficient during setup.

Adding swap solved memory pressure.

3. ESXi Monitoring Over ZeroTier

Installing ZeroTier directly on ESXi was not ideal.

A local proxy provided a cleaner and more scalable architecture.

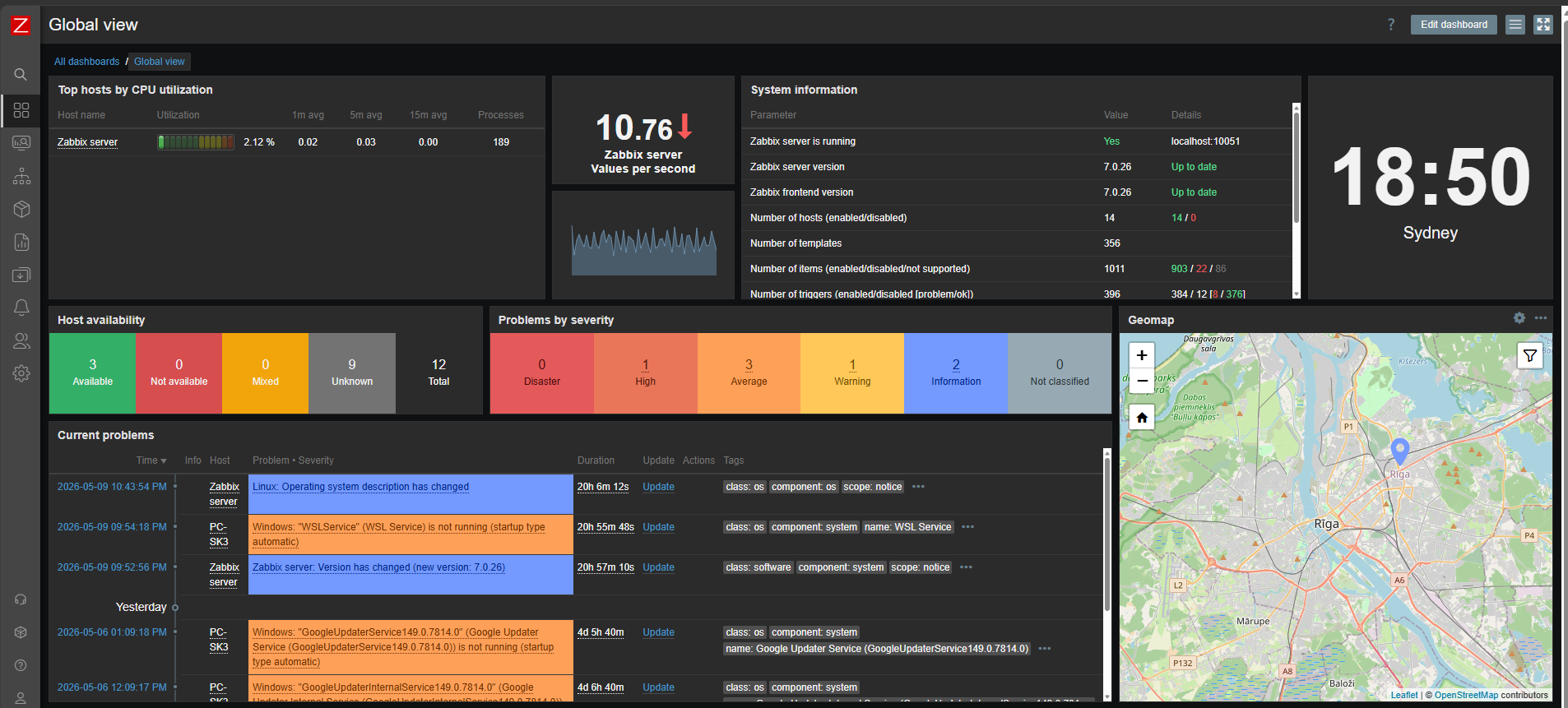

📊 Final Result

My monitoring stack now includes:

✅ VMware ESXi monitoring
✅ Linux & Windows monitoring
✅ HPE iLO hardware health
✅ Cloud + on-prem visibility
✅ Secure connectivity without port forwarding
✅ HTTPS dashboard via Cloudflare & Let’s Encrypt

🧠 What I Learned

• Hybrid monitoring architecture design
• Secure networking using ZeroTier
• VMware monitoring through APIs
• Zabbix Proxy deployment patterns
• Cloud-hosted monitoring best practices

🚀 Future Improvements

• Telegram/email alerting
• Monitoring Docker containers
• Grafana dashboards
• HA Zabbix deployment
